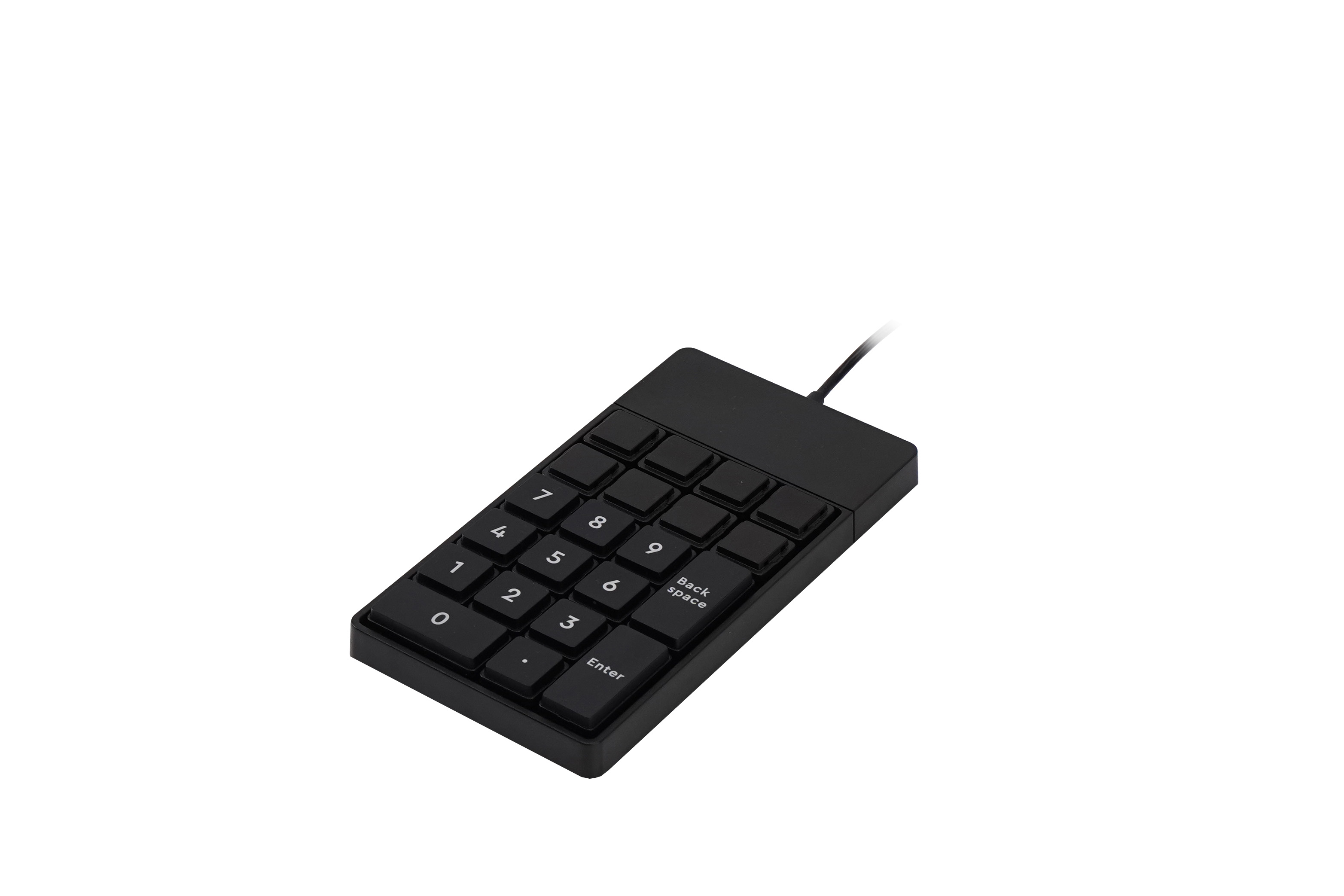

S24B

Description

Main Features:

  • Slim and with tactile key design, 2.5mm travel distance allowing fast input
  • Using FULL POM keycaps, avoid key texture wearing
  • Excellent laser graved legends, white and durable
  • All keys are programmable, support double and quad keys

Software Features:

  • Powered by Matrix Maker Programming Utility (Windows and Android versions available)
  • Does not require a TSR program and hence avoids application software crashes
  • Provides multi-level programming
  • Provides for a variable time delay of up to 255 seconds in each programmed string
  • Support OPOS / JPOS in Windows, Linux





Technical Specification

Input voltage: 5V +/-10%
Operating current: less than 100mA
Interface: USB
Key life: 10 million strokes
Key travel: 2.5mm travel distance
Key activation: 1.5mm
Key force: 60 ± 20cN
Storage Temp.: -40°C to +60°C
Working Temp.: 0°C to +50°C
Working Humidity: 20% to 90%
Approval: FCC/CE
