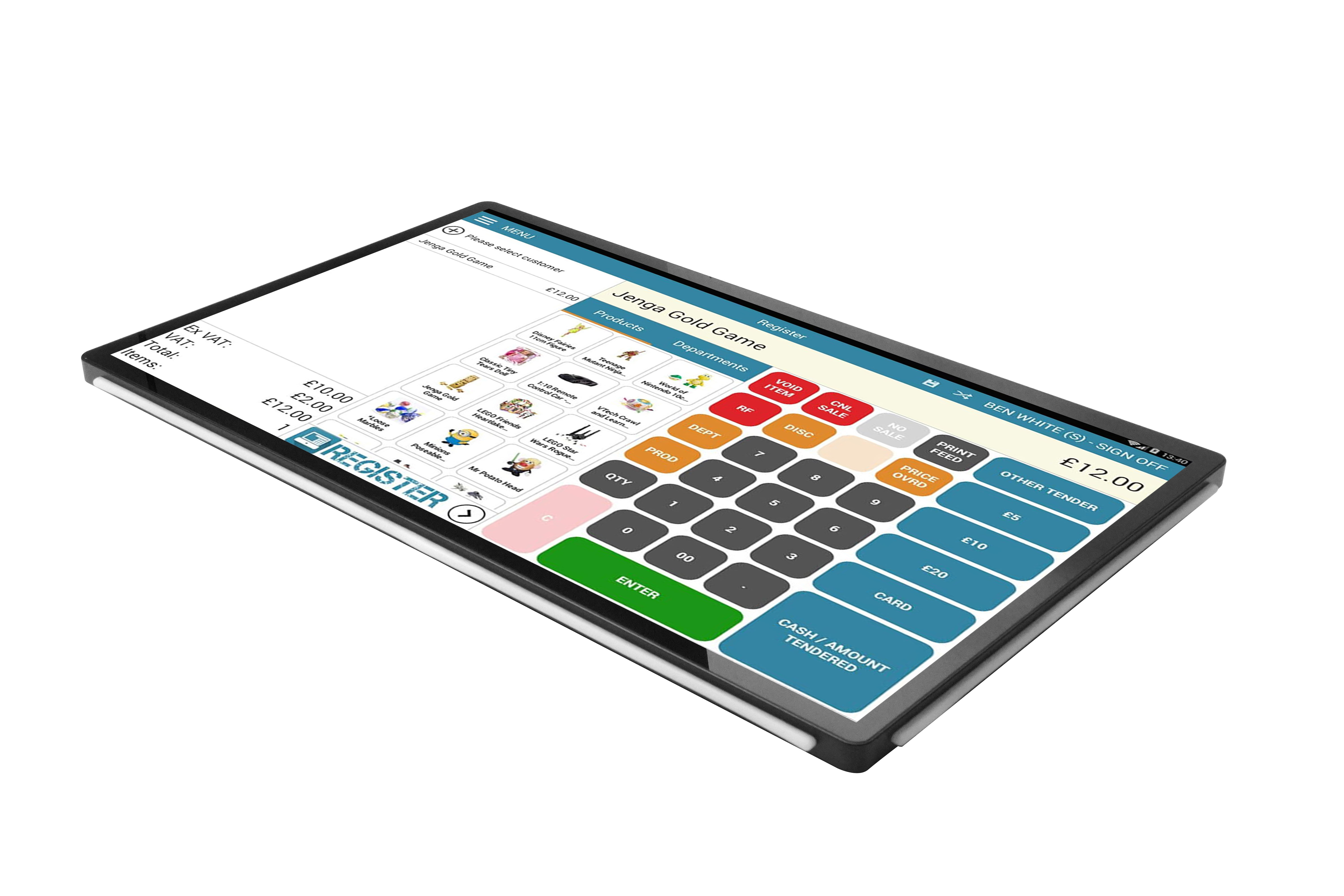

DP703A
Description
Main Features
- 7” TFT panel, zero bezel design, with LED backlight
- SVGA (800 x 480) resolution
- Available in USB VGA interface
- Low power consumption
- Power by USB port, need not external power adaptor
- Multilingual OSD Menu
- Support VESA mounting
- Support PCAP touch (optional)
- Two USB type C port connections:
- At the bottom of the back housing, for the version with stand / pole
- At the top of the back housing, for back mounting to the POS machine
- Available with two stands:
- Standard Stand
- Long Pole Stand, extendable
Technical Specification
| Panel | Viewing Area | 7” inches |
| Resolution | 800 x 480 | |
| Active Display Area (mm) | 154.08 (W) x 85.92 (H) | |
| Response Time (at 0°C) | 2ms(Rising), 6ms(Falling) | |
| Contrast Ratio | 500:1 | |
| Viewing Angle
Up/Down/Left/Right |
50°/ 70°/ 70°/ 70° | |
| Luminance | 250 cd/m² | |
| Video Input | VGA Signal | RGB Analog |
| Touch Panel (Optional) | PCAP Touch | Support 10 multiple touches |
| Power Input (USB VGA) | Output (USB VGA) | USB 5V |
| Power Consumption | USB VGA | ≦3W |
| Environment | Storage Temperature | -20℃ ~ 70℃ |
| Operating Temperature | 0℃ ~ 60℃ | |
| Operating Humidity | 10% ~ 80% | |
| Mounting | Standard | VESA compliant (100mm x 100mm) |
