Key Features

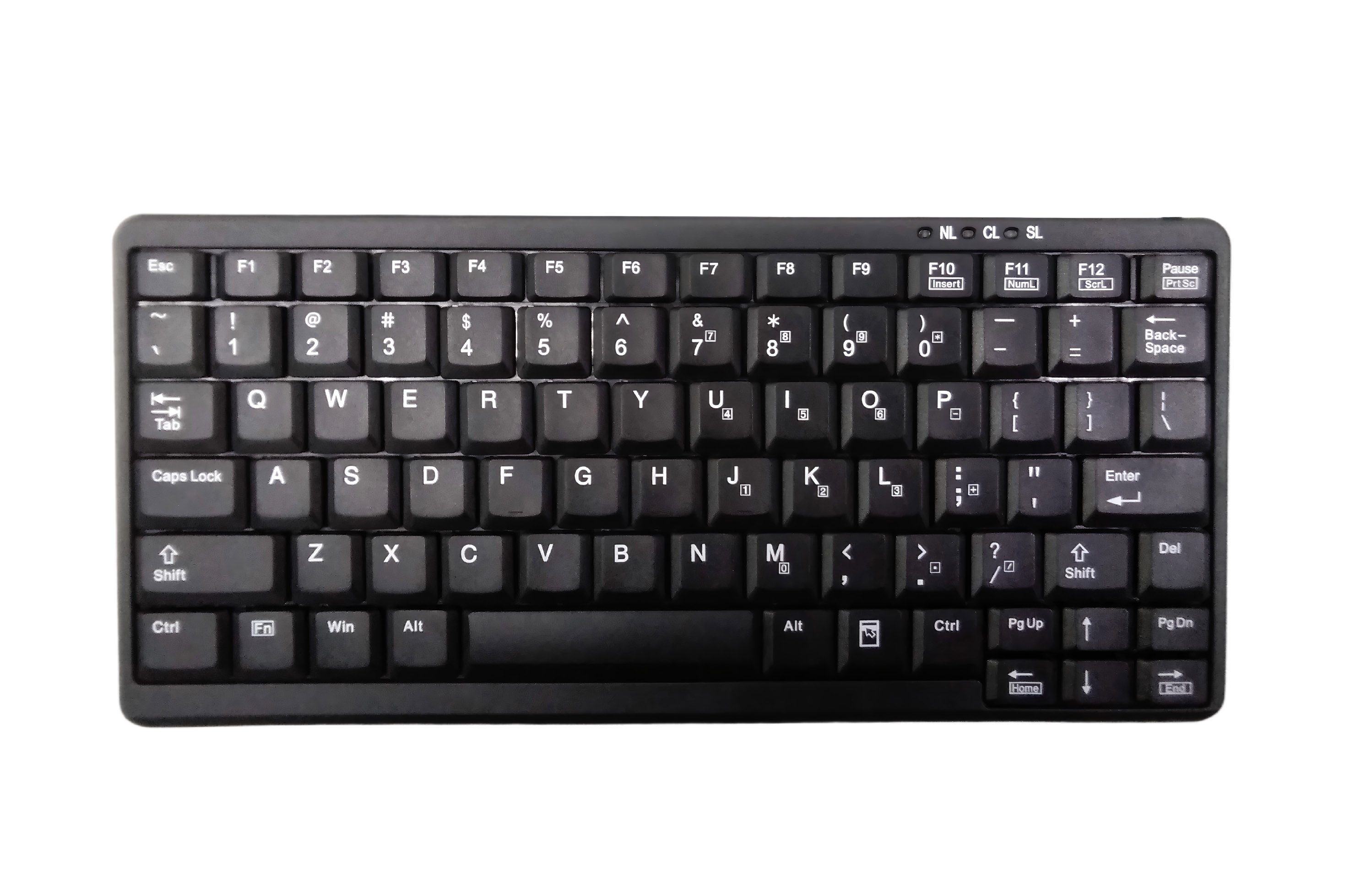

  • Mini notebook layout
  • Light Weight
  • Good tactile feeling as the notebook key type
  • Laser-engraved keycaps [beige color] or High quality UV silk screen printed keycaps [black color]
  • With internal metal plate to enhance the protection against ESD
  • Dual Interface: USB and PS/2.
  • Support multi-country layouts
  • Dimensions are compatible to Cherry G84-4100 keyboard
  • Ideal input device for applications in POS and Industry Production Control

Technical Data


Power supply

  • PS/2: +5V/DC +/-10%
  • USB: +5V/DC +/-10%

Current input

  • PS/2: <100mA
  • USB: <100mA


  • USB
  • PS/2 via adapter


Number of keys

  • 82: US layout
  • 83: European layout

Individual key life cycle: 5 million key strokes

Dimensions: 282 x 132 x 27 mm


  • Storage temperature: -40 degree C to +60 degree C
  • Operating temperature: 0 degree C to +50 degree C
  • Operating humidity: 20% to 90%
